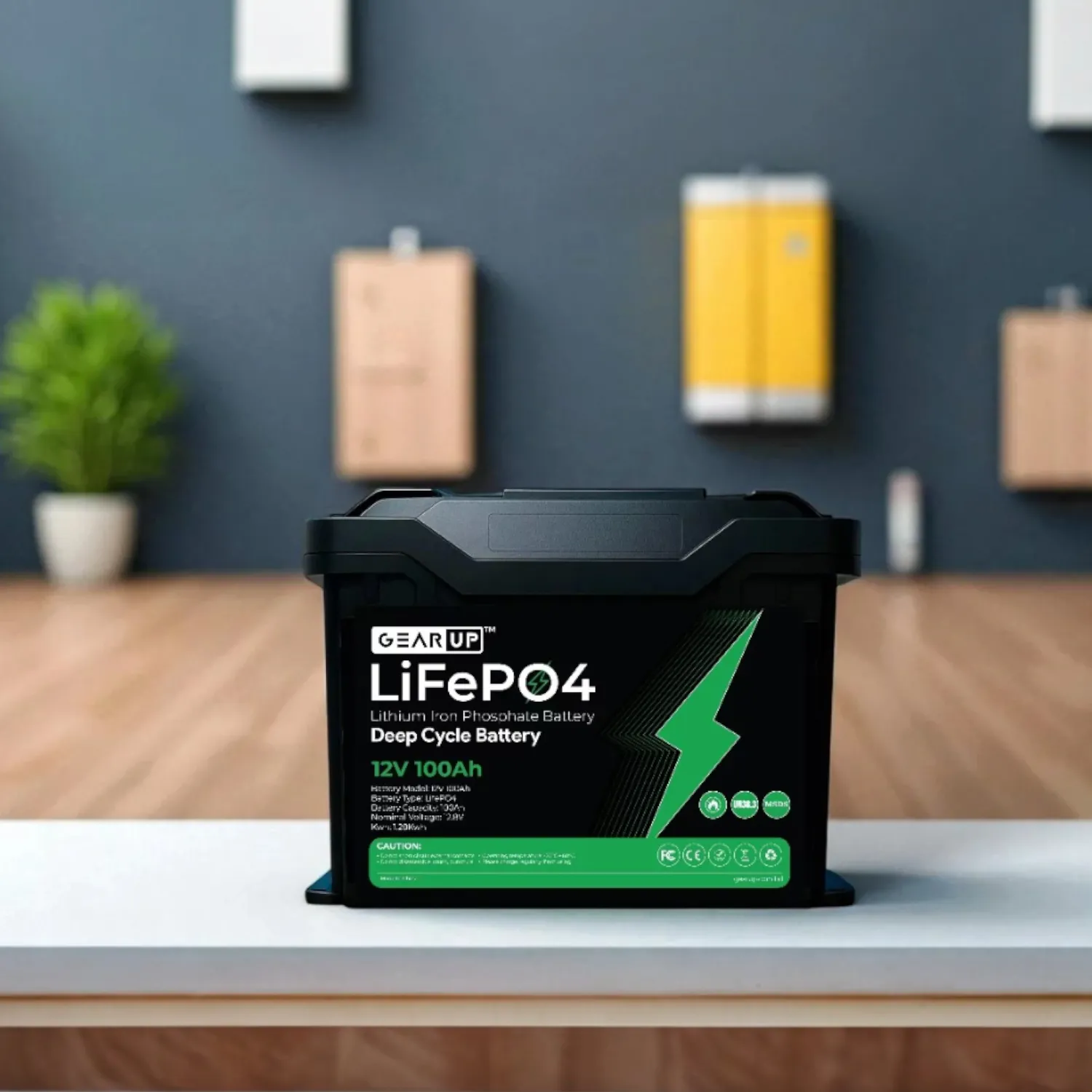

GearUP 12V 100Ah LifePO4 Lithium Battery with Smart BMS + Bluetooth

GearUP 12V 100Ah LifePO4 Lithium Battery in Bangladesh

Get The GearUP 12V 100Ah LifePO4 Lithium Battery in Bangladesh at DROPSHOP.COM.BD. Enjoy top quality and unbeatable prices with the best customer service in Bangladesh

The GearUP 12V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is designed for high-performance energy storage, offering a robust solution for applications such as RVs, marine use, solar systems, and off-grid setups. With a built-in Battery Management System (BMS) and Bluetooth connectivity, this battery combines advanced technology with reliability and safety.

Key Features

1. High Cycle Life

• 6000+ Deep Cycles: The GearUP 12V 100Ah LiFePO4 battery is engineered to deliver over 6000 cycles at 80% Depth of Discharge (DOD), significantly outlasting traditional lead-acid batteries, which typically offer 200-500 cycles. This translates to a lifespan of up to 10 years or more, depending on usage.

2. Built-in 100A BMS

• Comprehensive Protection: The integrated 100A Battery Management System ensures safety and longevity by protecting against:
  • Overcharging
  • Over-discharging
  • Overcurrent
  • Short circuits
  • High and low-temperature conditions
• Low-Temperature Cut-Off: The BMS includes a low-temperature protection feature, halting charging below 0°C (32°F) to prevent cell damage, resuming when temperatures rise above 5°C (41°F). This makes it ideal for cold environments like winter RV camping or marine applications.

3. Bluetooth Connectivity

• Real-Time Monitoring: Bluetooth 5.0 enables users to monitor battery status via a dedicated smartphone app. Parameters such as voltage, charge/discharge current, state of charge (SOC), and protection status can be tracked in real-time, ensuring optimal performance and safety.

4. Lightweight and Compact

• Weight: Approximately 10- 11 Kg, roughly one-third the weight of equivalent lead-acid batteries, making it easier to handle and install.

5. High Energy Density

• Capacity: 100Ah at 12.8V, delivering 1280Wh of energy.
• Efficiency: Offers higher energy density and faster charging (up to 5 times faster than lead-acid batteries), reaching 80% charge in about one hour with a suitable charger.

6. Versatile Applications

• Suitable for:
  • RV camping
  • Marine and trolling motors
  • Solar energy storage
  • Off-grid systems
  • Home backup power
• Expandable: Supports up to 4 batteries in series (for 48V systems) and 15 in parallel (for increased capacity).

7. Safety and Certifications

• Grade A+ Cells: Utilizes A-grade LiFePO4 cells certified for safety (e.g., UL, CE, UN38.3).
• IP67 Waterproof: Both dust-tight and waterproof, capable of withstanding submersion in up to 1 meter of water for 30 minutes, making it suitable for harsh environments like marine or outdoor use.
• Non-Toxic: Free of heavy metals and rare earth elements, ensuring an environmentally friendly energy solution.

Performance Specifications

• Nominal Voltage: 12.8V
• Capacity: 100Ah (1280Wh)
• Max Continuous Charge Current: 100A
• Max Continuous Discharge Current: 100A
• Peak Discharge Current: 200A (3-5 seconds)
• High Cut Voltage: 14.6V
• Low Cut Voltage: 10.0V
• Recommended Charging Current: ≤50A
• Operating Temperature:
  • Discharge: -20°C to 60°C (-4°F to 140°F)
  • Charge: 0°C to 45°C (32°F to 113°F)
• Weight: ~ 10- 11 Kg
• Dimensions: ~322*194*233mm

Advantages Over Lead-Acid Batteries

• Longevity: 10-15 times more cycles than lead-acid batteries.
• Weight: Approximately 1/3 the weight, reducing strain in mobile applications.
• Maintenance-Free: No watering or maintenance required, unlike lead-acid batteries.
• Faster Charging: Reaches full charge significantly quicker.
• Orientation Flexibility: Can be mounted in any direction without risk of leakage.

Use Cases

• RV and Camping: Power appliances, lights, and electronics for extended trips.
• Marine: Ideal for trolling motors and fish finders, with robust BMS protection against water and salt spray.
• Solar Systems: Efficient energy storage for off-grid solar setups, compatible with MPPT controllers.
• Backup Power: Reliable for home or emergency power systems.

Charging Options

• LiFePO4 Charger: Recommended for optimal performance (e.g., 14.6V 20A charger for ~5-hour full charge).
• Solar Panels: Compatible with solar setups using MPPT controllers.
• Generator: Supports charging via a DC generator for off-grid scenarios.

Warranty and Support

• Warranty: 5-Years (2 Years Parts + Service and next 3 years only Service Warranty).
• Customer Support: GearUP provides support for troubleshooting and warranty claims, often including detailed manuals and responsive service.



GearUP 12V, 100Ah Lithium Battery Technical Specifications:

Application	RV/Van Camper/Marine/DIY Solar/Backup Power	Max Load Quantity(cells)	1280WH
Cycle Life	≥6000 Cycles	Model Number	12V 100Ah
Cell Brand	REPT	BMS Brand	JBD
Operating Temperature(℃)	-20-65℃	Cathode Materials	LiFePO4
Brand Name	GearUP	Battery Type	Solid state
Dimension (L*W*H)	L12.91*W8.44*H6.85	Weight	~ 10-11 Kg
Usable capacity	100Ah	Nominal Voltage	12.8V
Max. Continuous Charge Current	100A	Max. Continuous Discharge Current	100A
Energy	1280Wh	Max. Continuous Load Power	1280W
